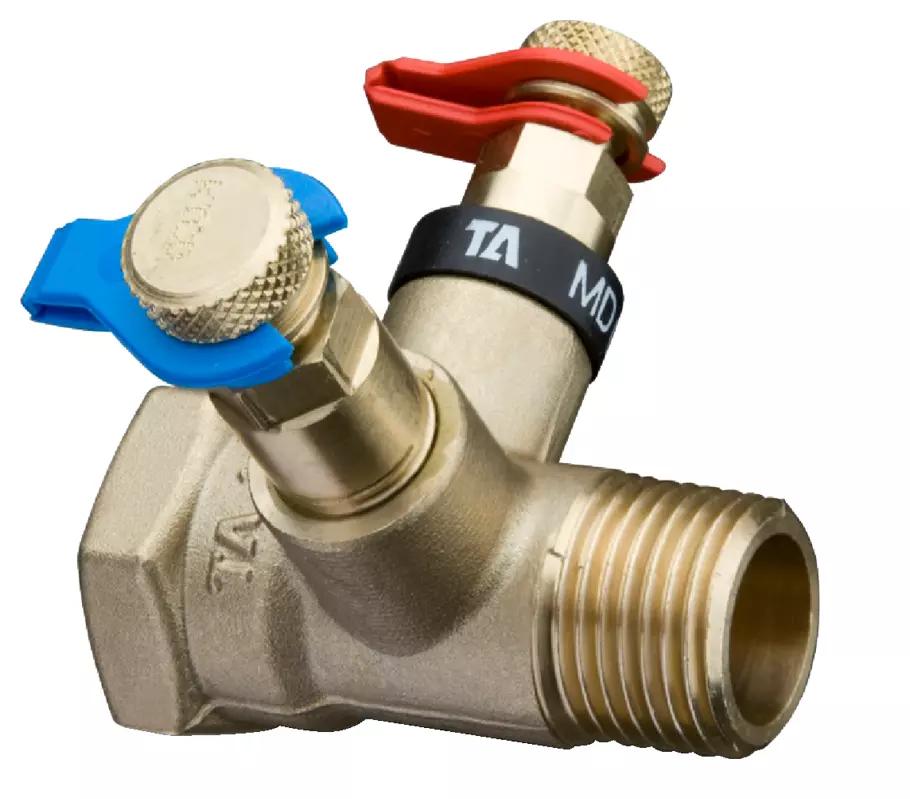

MD 01, 02, 03
Flow measuring orifice DN 15-50
Flow measuring orifice with self-sealed measuring points.
Technical SpecificationsMD01_02_03_UK_low.pdf
Product branding
Features and Benefits
Self-sealing measuring points
For simple, accurate balancing.
AMETAL®
Dezincification resistant alloy that guarantees a longer valve lifetime and lowers the risk of leakage.
Applications
Tap water systems
Heating and cooling systems.
Functions
Measuring
Dimensions
DN 15-50
Pressure class [PN]
PN 20
Temperature
Max. working temperature: 120°C
Min. working temperature: -20°C
Measuring points
Marking
TA, DN, PN and flow direction arrow.
Identification rings on measuring points.
Material
Body: AMETAL®
Measuring points: AMETAL®
Sealing (measuring points): EPDM
KOMBI compression coupling:
Thrust screw: Nickel plated brass
Cone: Brass
AMETAL® is the dezincification resistant alloy of IMI Hydronic Engineering.
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
