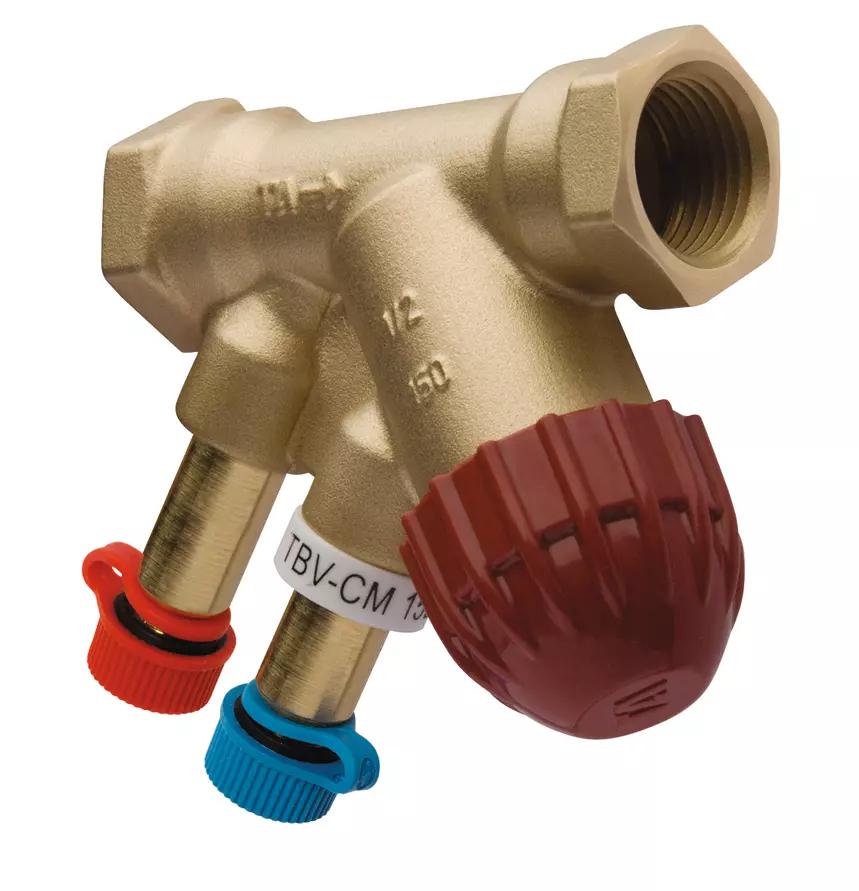

TBV-CM

TBV-CM

Terminal balancing valve for modulating control

Designed for use in terminal units in heating and cooling systems, the TBV-CM ensures accurate hydronic control and optimum throughput over a long lifetime. IMI Hydronic Engineering’s dezincification resistant alloy, AMETAL®, minimises the risk of leakage.

Technical SpecificationsTBV-CM_EN_MAIN.pdf

Product branding

imi_ta

Features and Benefits

Presetting tool

For accurate and easy balancing.

Shut-off function

Ensures straightforward maintenance procedures.

Self-sealing measuring points

For quick and easy measurement.

Applications

Heating and cooling systems.

Functions

Balancing

Control

Measuring

Presetting

Shut-off (for isolation during system maintenance)

Dimensions

DN 15-25

Leakage rate

Tight sealing

Actuators

See separate information on EMO TM.

Marking

Body: TA, PN 16/150, DN, inch size and flow direction arrow.
Identification ring on measuring point:
White = Low flow (LF)
Black = Normal flow (NF)

Material

Valve body: AMETAL®
Valve plug: PPS (polyphenylsulphide)
Seat seal: EPDM/Stainless steel (DN 15-20). EPDM/AMETAL® (DN 25).
Spindle seal: EPDM O-ring
Valve insert: AMETAL®, PPS
AMETAL® is the dezincification resistant alloy of IMI Hydronic Engineering. (polyphenylsulphide)
Return spring: Stainless steel
Spindle: AMETAL®,

The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
