TA-Mini-Fast-Fit
Fabricated solutions for small terminal units

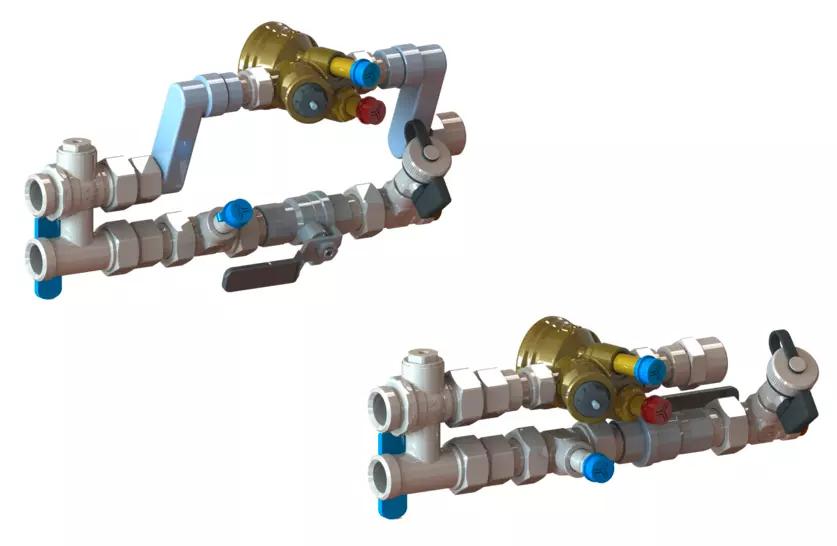

Compact pressure independent solution for modulating or on/off control. Ideal solution for pre-assembled installations on a c-c 40 mm fan-coil unit.
Technical SpecificationsTA-Mini-Fast-Fit_EN_low.pdf
Product branding
Features and Benefits
Highly reliable
Pressure tested unit with security marked joints reduces the risk of leakage.
Quick hydronic balancing
The pressure independent solution provides direct setting of the max flow.
Easy installation
Each unit is uniquely labeled as required.
Precise flow control
The modulating version provides uniquely shaped EQM characteristic for best modulating control.
Applications
Heating and cooling systems.
Pressure class [PN]
PN 16
Material
Material:
TA-Modulator, TA-COMPACT-P and TA-BAV:
See separate technical leaflets.
Strainer ball valve:
Body: DZR CW602N
Closing end nut: DZR CW602N
Stem: DZR CW602N
Steam bearing: PTFE
Stem O-ring: FKM
Ball: DZR CW602N
Ball seat: PTFE
Filter: Stainless steel AISI 304
Filter cap: DZR CW602N
Filter cap O-ring: EPDM
Filter locking ring: Phosphorus bronze
H-bypass valve:
Body: CW617N
Closing end nut: CW614N
Stem: CW614N
Stem O-ring: NBR
Ball: CW614N
Ball seat: PTFE
Closing cap: CW614N
Closing cap seat: PTFE
Closing cap O-ring: EPDM
Drain valve:
Body: CW617N
Closing end nut: CW614N
Stem: CW614N
O-ring: EPDM
Ball: CW614N, chrome plated
Ball seat: PTFE
T-piece for drain valve fixation: DZR CW602N
Lever: Polyamide
Measuring test point:
Body: AMETAL®
Stop ring: AMETAL®
Rubber sealing: EPDM
T-piece for measuring test point fixation: DZR CW602N
Connections:
Nuts: CW617N
O-rings: EPDM
Nipples: CW617N
Eccentrics: CW617N
Conical reduction: CW617N
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
