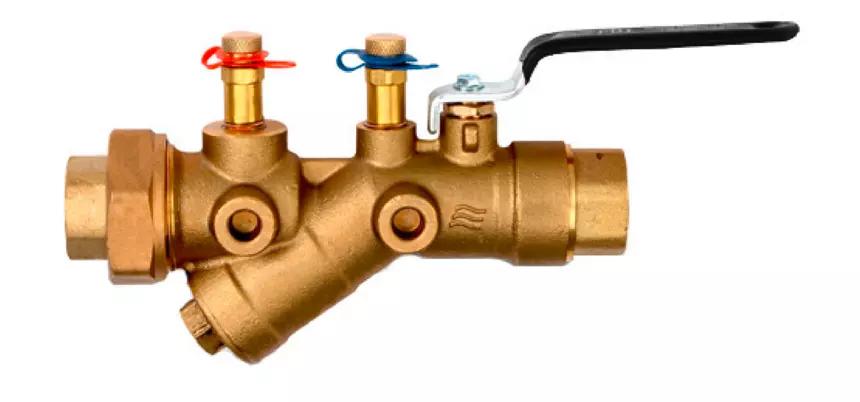

AC, ACR, AC SBS, ACR SBS

Flow regulator & union

AC, ACR, AC SBS and ACR SBS (SBS version with stainless steel ball and stem) are AutoFlow combination ball valves, AutoFlow regulator and union with up to five (5) accessory port locations. Unit is factory set to automatically limit the flow rate to within 5% of the specified amount. The flow cartridge is removable from the valve body to provide access for flow rate changes, inspection, and cleaning without breaking the main piping. The ball valve has PTFE packing, brass packing nut and blowout-proof stem, large diameter plated ball and a full size steel handle with vinyl grip. The union has an EPDM “O”-ring and tailpiece available in M, F and S connections. Ball valve end is available only in FPT or SWT. Pressure / Temperature ports are standard.

ACR and ACR SBS are the more Compact, Y-shaped combination ball valve, AutoFlow regulator and union with four accessory port locations.
