Fail safe modulating actuator for terminal unit valves

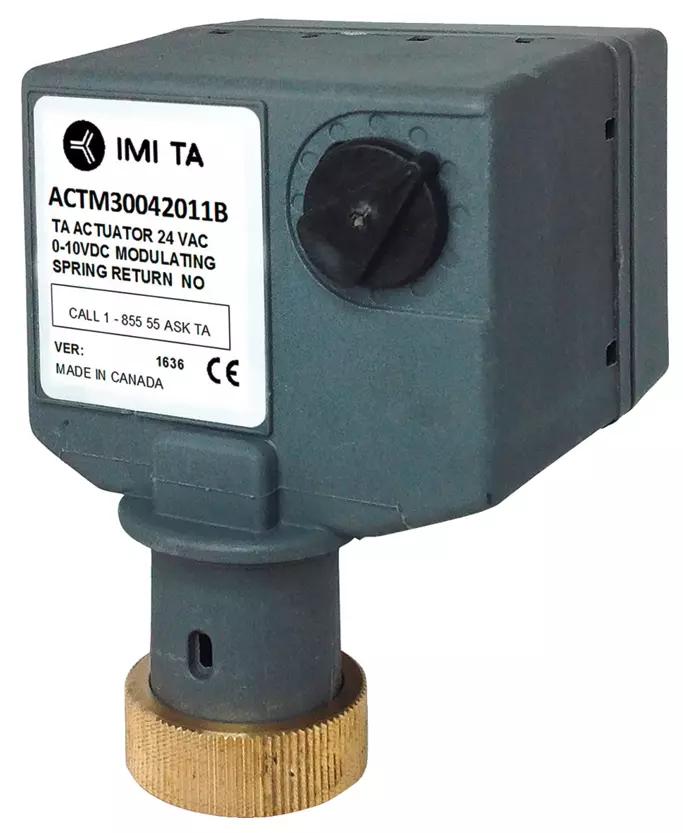

These control valve actuators use common high strength, glass filled, nylon composite and electric gear motor. Available as normally open or normally closed option, these spring return actuators have proportionally, 4-wire, fail-safe on power disruption capability. The actuator is equipped with a dial type position indicator and a M30x1.5 quick disconnect mounting thumbnut to easily connect to our TA balancing and control valves like TA-COMPACT-P, TA-Modulator and TBV-CM.

Technical SpecificationsTA-ACTM_US_low.pdf

Product branding

imi_ta

Features and Benefits

Conforms to CE, UL/CSA and RoHS standards

Position indicator

For visibility of stroke position.

Motor jam recovery

System reverses the motor, backs up and again attempts to move to calculated position.

Maintenance free motor

Brushless hysteresis that is capable of continuous stall. For greater control accuracy and dependability.

Functions

Proportional control

Temperature

Max. ambient temperature (in operation): 120°F

Min. ambient temperature (in operation): 40°F

Storage temperature: -13°F to 158°F

Control speed

10 sec/0.177 in, proportional range

Supply voltage [V]

24 VAC +10%/-5% Frequency 50/60 Hz

Power consumption

Starting ≤ 6.0W

During operation ≤ 7.2W

Stroke

Max. 0.177 in

Marking

Lable with: IMI TA, article No., technical specification, CE.


Colour

Grey

Adjusting force

28 lbf

Connection to valve

Retainer nut M30x1,5

Cable

Cable length: standard 36” wire harness.

Material

Body: High stress 33% glassfilled Nylon

Mounting ring: Brass

Ingress protection

IP20 (NEMA I)

Certifications and directives

CE: EN50081-1, EN55014, EN6100-3-2, EN61000-3-3.

RoHS-D. 200295/EC.

3rd Item Number

ACTM300420YYY

The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
