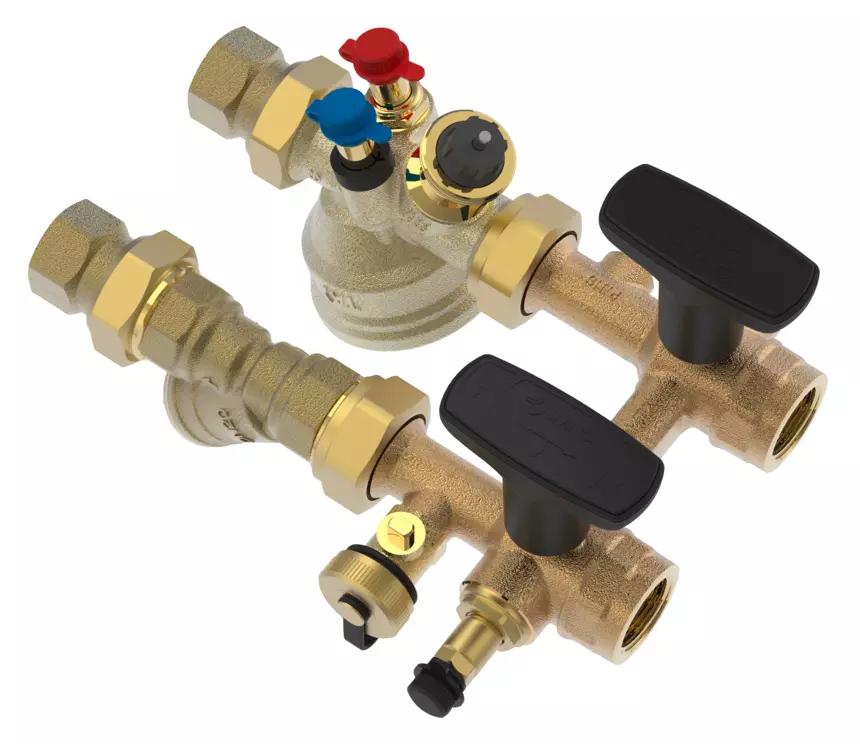

TA Fast-Fit – NPT threads
For small terminal units
Comprehensive range of pre-fabricated solutions for small terminal units. Suitable for both heating and cooling applications.
Technical SpecificationsTA_Fast-Fit_NPT_US_low.pdf
Product branding
Features and Benefits
Highly reliable
Fully assembled and factory pressure tested to ensure reliability.
Easy installation
Each unit comes ready to install and uniquely labelled saving time on site.
Quick hydronic balancing
The pressure independent solution provides direct setting of the max flow.
Precise flow control
The modulating version provides uniquely shaped EQM characteristic for best modulating control.
Applications
Heating and cooling systems.
Pressure class [PN]
PN 16 (230 psi)
Material
TA-Modulator, TA-COMPACT-P, TA-STR: See separate technical leaflets.
H-bypass valve:
Body: Gunmetal
Closing end nut: Brass CW602N
Stem: Brass CW602N
Stem guiding: PTFE
Stem O-ring: EPDM
Stem nut: Brass CW614N
Ball: Gunmetal
Ball seats: PTFE
Closing cap: Brass CW602N
Closing cap seat: PTFE
Closing cap O-ring: EPDM
Drain: Brass
Sealings: EPDM
Measuring points: AMETAL®
Sealings: EPDM
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
